Essex Mk1 Miniature Toy Sewing Machine Threading Diagram

In order for the Essex Mk1 miniature toy sewing machine to work correctly it is essential that it is properly threaded.

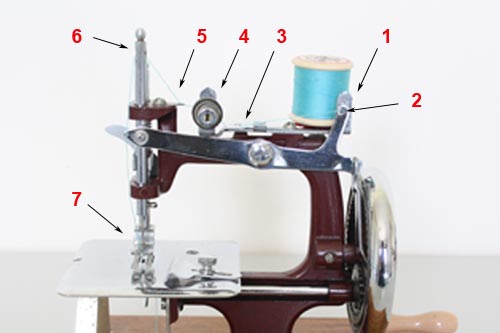

Essex Mk1 Threading Diagram

To Thread an Essex Mk1:

Start with the needle in its fully raised position so that the holes in side of the spool support bracket and the rocker arm are aligned.
Pass the thread through the holes in the spool bracket sideplate and the rocker arm to the front of the machine (Photo 1)
Draw the thread to the left along the top arm of the machine and pass it down through the hole in the tension pressure plate to the back of the machine (Photo 2)
Lift the thread upwards and towards the front of the machine and insert it over the top and between the tension discs (Photo 2)
Pass the end of the thread up through the tag mounted on the machine arm and then through the hole in the top of the needlebar. (Photo 3)
Pass the thread through the hole in the end of the rocker arm from front to back (Photo3)
Thread the needle from left to right, ensuring that the correct 15x1 needle is being used (Photo 4)
Pass the end of the thread down through the centre of the presser foot and draw it out the back of the machine UNDER the presser foot
When starting to stitch keep a slight manual pull on the end of the thread until the first few stiches are completed

IMPORTANT - Many apparent problems with getting these machines to sew properly are just the result of not following the final two steps above.
