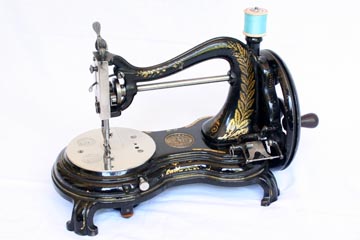

Jones Serpentine Hand Sewing Machine Parts

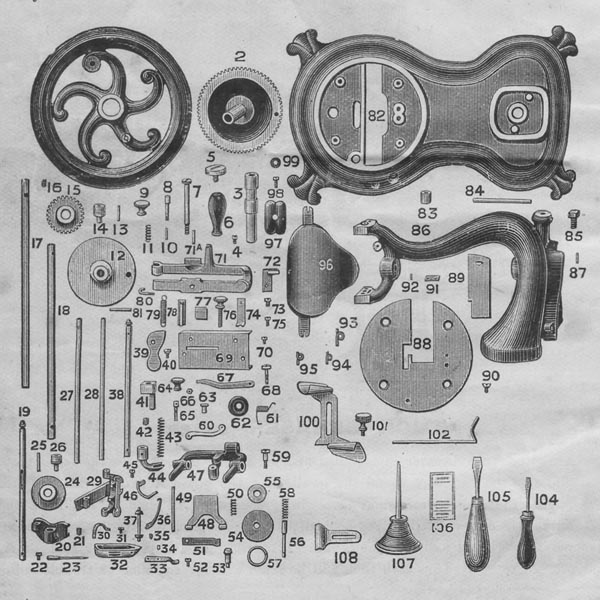

Parts Diagram
Parts List
| Item No. | Description |
|---|---|
| 1 | Balance Wheel |
| 2 | Large Gear |
| 3 | Large Gear Stud |
| 4 | Lock Screw For Gear Stud |
| 5 | Screw To Hold Balance Wheel On Machine |
| 6 | Balance Wheel Handle |
| 7 | Balance Wheel Handle Screw |
| 8 | Balance Wheel Bolt |
| 9 | Balance Wheel Bolt Nut |
| 10 | Balance Wheel Bolt Pin |
| 11 | Balance Wheel Bolt Spring |
| 12 | Large Gear |
| 13 | Feed Cam |
| 14 | Feed Cam Roller And Stud |
| 15 | Small Gear |
| 16 | Small Gear Screw |
| 17 | Top Shaft |
| 18 | Bottom Shaft |
| 19 | Needle Bar |
| 20 | Needle Bar Cam |
| 21 | Needle Bar Cam Screw |
| 22 | Needle Set Screw |
| 23 | Needle |
| 24 | Cam Wheel |
| 25 | Cam Wheel Pin |
| 26 | Cam Roller And Stud |
| 27 | Shuttle Carrier Slide (Top) |
| 28 | Shuttle Carrier Slide (Bottom) |
| 29 | Shuttle Carrier |
| 30 | Shuttle Carrier Spring |
| 31 | Shuttle Carrier Spring Screw |
| 32 | Shuttle |
| 33 | Spring Latch Inside Shuttle |
| 34 | Spring Latch Rivet |
| 35 | Shuttle Tension Screw |
| 36 | Shuttle Thread Guide |
| 37 | Shuttle Reel |
| 38 | Foot Bar |
| 39 | Presser Foot Lifter |
| 40 | Presser Foot Lifter Screw |
| 41 | Post Block To Presser Bar |
| 42 | Post Block Screw |
| 43 | Foot Bar Spiral Spring |
| 44 | Presser Foot |
| 45 | Foot Screw For Quilting Guide |
| 46 | Binder |
| 47 | Spooler Frame |
| 48 | Spooler Presser Plate |
| 49 | Spooler Presser Plate Bar |
| 50 | Spooler Presser Plate Spring |
| 51 | Spring To Hold Winder To Balance Wheel |
| 52 | Screw for item No. 51 |
| 53 | Spooler Spindle |
| 54 | Leather Spooler Pulley |
| 55 | Spooler Pulley Washer |
| 56 | Left Centre Pin For Spooler |
| 57 | Left Centre Ring |
| 58 | Left Centre Spring |
| 59 | Spooler Screw |
| 60 | Check Lever |
| 61 | Check Lever Spring |
| 62 | Tension Disc |
| 63 | Tension Disc Stud |
| 64 | Tension Thumb Nut |
| 65 | Tension Thumb Screw |
| 66 | Tension Screw Leather Washer |
| 67 | Tension Spring |
| 68 | Check Lever Screw |
| 69 | Face Plate |
| 70 | Face Plate Screw |
| 71 | Feed Lever |
| 71A | Feed Rocker Stud |
| 72 | Feed Surface |
| 73 | Feed Surface Screw |
| 74 | Stitch Screw Spring |
| 75 | Screw For Spring No. 74 |
| 76 | Stitch Screw |
| 77 | Leather Pad For End Of Feed Lever |
| 78 | Leather Pad For Centre Of Feed Lever |
| 79 | Feed Spiral Spring |
| 80 | Feed Spring Hook |
| 81 | Feed Spring Pin |
| 82 | Machine Bed |
| 83 | Rubber Feet For Bed |
| 84 | Bobbin Peg |
| 85 | Top Arm Set Screw |
| 86 | Arm Of Machine |
| 87 | Top Arm Steady Pin |
| 88 | Cloth Plate |
| 89 | Cloth Plate Slide |
| 90 | Cloth Plate Screw |
| 91 | Cloth Plate Leather Pad |
| 92 | Cloth Plate Pad Rivet |
| 93 | Spooler Thread Guide |
| 94 | Spooler Thread Guide On Centre Of Arm |
| 95 | Thread Controller |
| 96 | Large Oil Dripper |
| 97 | Small Oil Dripper |
| 98 | Screw For Small Oil Dripper |
| 99 | Cloth Washer for Small Oil Dripper |
| 100 | Double Hemmer |
| 101 | Guide Screw |
| 102 | Quilter |
| 104 | Shuttle Turnscrew |
| 105 | Large Screwdriver |
| 106 | Packet Of Needles |
| 107 | Oil Can |
| 108 | Tucking Guide |
| 110 | Tension Releaser Lever |
| 111 | Tension Releaser Lever Stud |
| 112 | Tension Releaser Lever Stud Washer |
| 113 | Post Block Pin For Tension Releaser |
